Corrugated Metal Decking with Embossments Galvanized Steel Floor Decking Sheets

FMS915

Quantity

Contact Now

add to cart

Galvanized steel floor decking sheet is a highly efficient, versatile and robust formwork, reinforcement and ceiling system for concrete slabs. It is a profiled steel sheeting widely accepted by the building and construction industry to offer efficiency and speed of construction. It is available in a Base Metal Thicknesses (BMT) 0.6, 0.75, 0.9, 1.0, 1.2 and 1.5mm.

Specifications:

Name	Metal Deck For Concrete
Base material	Hot Dipped Galvanized Steel Sheet
Steel Grade	SGCC
Yield strength	Q235 or Q345 Refer to Standards GB/T1591-2008
Thicknes	0.8 -1.5mm(normal 0.8,1.0,1.2)
Zinc coating	60-275g/m2
Wave Height	51mm-76mm
EffectiveWidth	688mm-940mm
Length	0-11.8m
	Less than 5.8m load in 20GP
	5.8m-11.8m load in 40GP
Packing	Bundle ,water-proof package with steel belt
Delivery time	30 days from order confirmation date

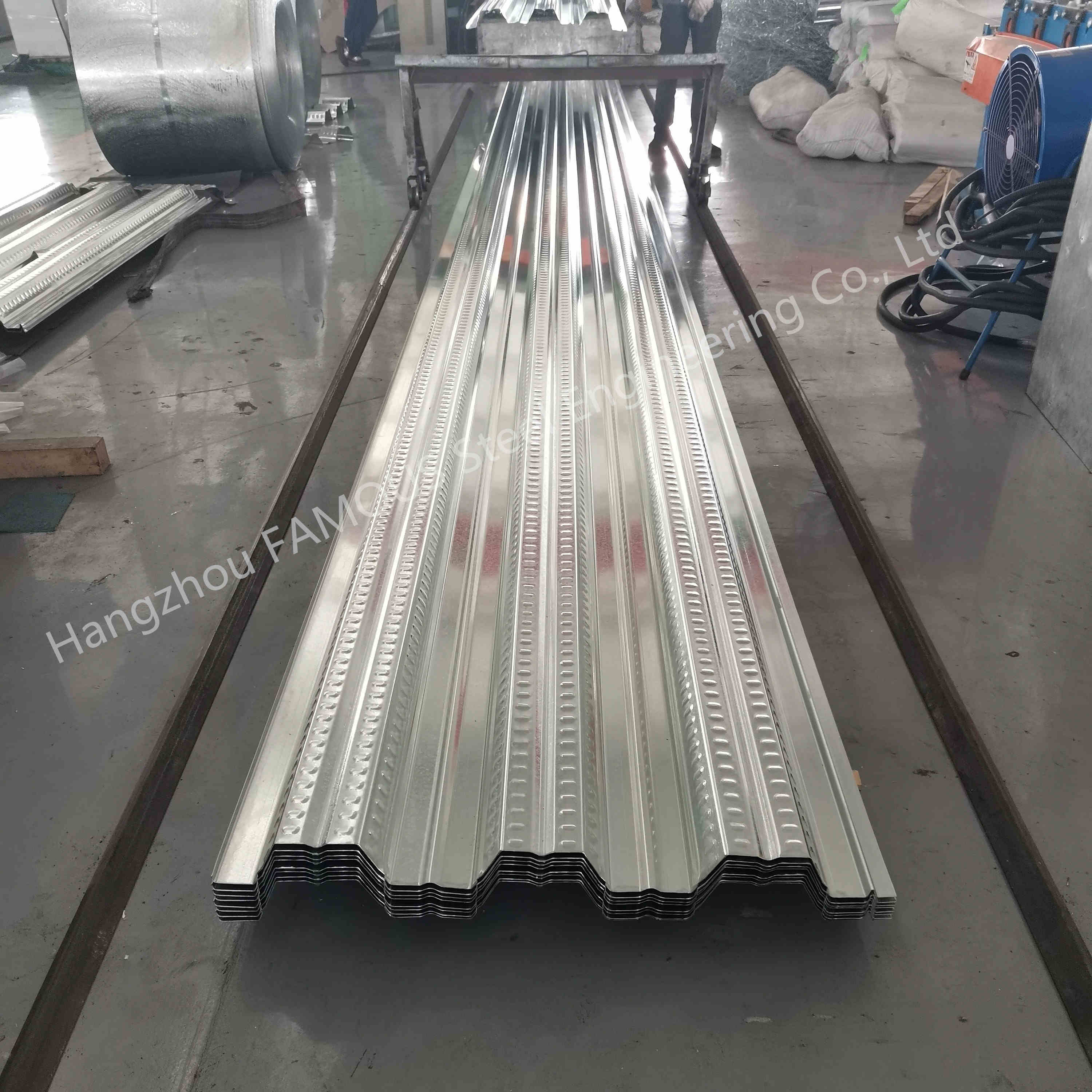

Floor decking sheet

DESIGN ADVANTAGES INCLUDE:
• Excellent spanning capacities for greater strength and less deflection
• Acts as permanent formwork with minimal propping and no stripping of formwork face is required
• Fast and easy to install with less handling required
• Works as reinforcement with composite slab saving on concrete and reinforcement costs
• Safe working platform with slip resistant embossments on the ribs
• Advanced design for fire resistance
• Backed by a BlueScope Steel warranty

We are specialized in offering various customized floor decking sheets profiles to cater for contractors’versatile need, meanwhile our engineers will offer various technical support in the aspects of load span and stress analysis etc.
